Sportster Chain Conversion: Belt to Chain Guide and Kits

The short answer

Most bolt-on Sportster chain kits for 2004-2022 bikes run a 530 chain with a 22-tooth front sprocket and a 51 or 52-tooth rear, close to stock gearing. The front sprocket nut on 1991-up Sportsters is left-hand thread. You gain gearing options and tire room, and you give up the belt's low maintenance.

Jump to a section
Sportster Chain Conversion: Belt to Chain Guide and Kits

The first thing you notice after a chain conversion is the sound. A belt Sportster rolls away almost silent below the exhaust note. With a chain, you hear the links working over the sprocket every time you pull out of the garage. Some riders hate it. Most of the ones who do the swap on purpose love it.

A belt-to-chain conversion is one of the most common changes on a Sportster bobber or chopper build, and one of the most misunderstood. It is not a performance mod in any real sense. It is a gearing, clearance and looks mod with a maintenance bill attached. This guide covers what your Sportster came with, what the kits change, how the swap goes, and whether it makes sense for the way you ride.

Belt Drive on the Sportster: What You Have Now

Sportsters did not always have belts. According to Wikipedia’s Sportster history, belt drive replaced the chain on the 883 Deluxe and all 1200 models for 1991, and became standard on every Sportster for 1993. So a conversion on a modern Sportster is partly a return to how the bike started.

Stock front pulley tooth counts changed over the years. Sportsterpedia’s transmission and final drive notes list:

ModelYearsFront pulley
8831991-200327 teeth
8832004-201028 teeth
8832011-on29 teeth
12001991-on29 teeth

The belt got narrower too. Sportsterpedia gives a 1-1/8 inch belt up to 2006 and a 1 inch belt from 2007. If you are keeping your old pulleys as a backup, keep the belt that matches them.

For reference, Harley’s 2009 spec for the 1200 Nightster lists the final drive as a 29/68 belt, according to Total Motorcycle. That works out to a final drive ratio of about 2.34 to 1. Keep that number in your head when you look at kit gearing.

Why Riders Convert

Gearing choice. Belt pulleys come in a handful of sizes. Chain sprockets come in dozens. If you want snappier acceleration for city riding, or a taller final drive for the highway, a chain makes that easy and cheap to change later.

Tire room. A chain is narrower than a belt. YouMotorcycle’s pros and cons rundown lists the extra space for a fatter tire as one of the main reasons riders switch. Note that most bolt-on kits still assume a stock-width wheel, so a wide tire build usually means more parts.

Looks. A chain and sprocket suits a stripped Sportster. On a Sportster bobber build with a solo seat and a chopped fender, a chain reads right in a way a belt guard never will.

Roadside repair. A chain can often be fixed on the road with a spare master link and basic tools. A snapped belt usually means a tow.

Custom frames. Hardtail and aftermarket frames often do not have room for the belt, or the builder just wants the simpler chain line.

Why Riders Do Not

YouMotorcycle is blunt about the downsides, and we agree with most of them:

  • Maintenance. A belt needs a look at every oil change. A chain wants cleaning, lube and slack checks every few hundred miles.
  • Life. YouMotorcycle puts a typical chain at 10,000 to 15,000 miles, against 60,000 to 100,000 miles for a belt. Sprockets wear with the chain, so budget for both.
  • Mess. Chain lube flings onto the wheel, the swingarm and your boots.
  • Smoothness. A belt has less driveline lash than a chain. On-off throttle feels a little softer with the belt.

Honest take: if your Sportster is a daily rider that racks up big miles in all weather, leave the belt on. If it is a weekend bobber you tinker with, the chain fits the build and the extra upkeep will not bother you.

Kits: What You Get and What Gearing They Run

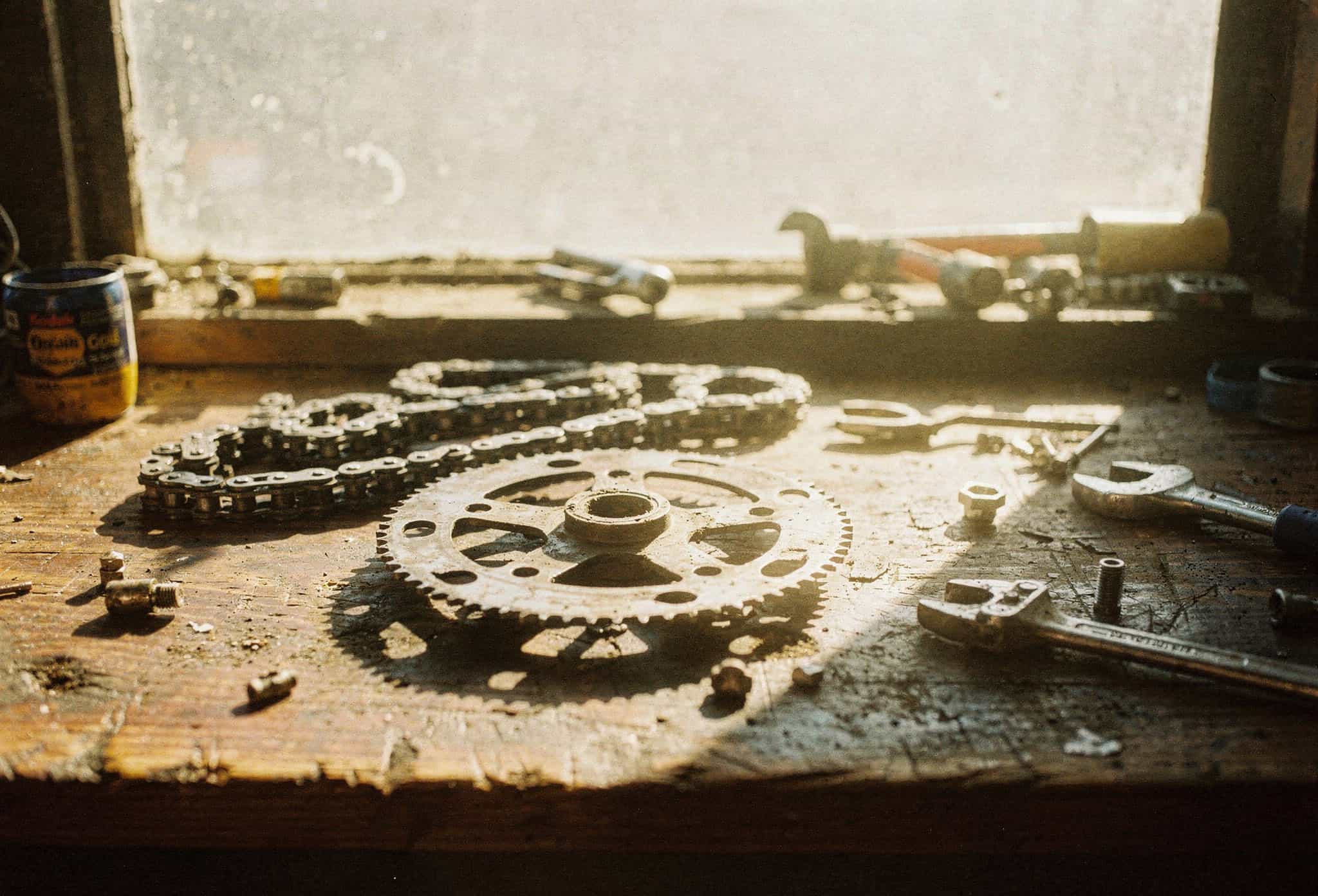

Sportster Chain Conversion: Belt to Chain Guide and Kits

Buying parts one by one is possible, but for a 2004-2022 rubber-mount Sportster a kit is the easier way to get the sprocket offset and spacer right. Two common examples:

TC Bros. The TC Bros belt-to-chain kit for 2004-2022 Sportsters is a 530 setup with a 22-tooth front and 51-tooth rear sprocket, a spacer, bolts and a stainless sprocket lock. TC Bros lists a 120-link chain, sold separately, and says it is designed for the stock wheel and tire in the stock swingarm. Other frames may need custom wheel spacers. Liquid-cooled models are excluded.

Lowbrow Customs. The Lowbrow 2004-up 1200 kit runs a 530 chain with a 22-tooth front and 52-tooth rear sprocket, a 2.36 to 1 ratio that Lowbrow says keeps stock gearing. It comes with Grade 8 bolts, heavy washers and a stainless locking tab washer, and it needs stock frame spacing and a stock-width wheel. Lowbrow also sells separate 883 and 1995-2003 kits.

Do the math on those numbers. 51 divided by 22 is about 2.32. 52 divided by 22 is about 2.36. Both sit right next to the 2.34 of the stock 29/68 belt, so a stock-ratio kit rides almost exactly like the bike did before. Want more punch? Add teeth at the rear or drop one at the front. One tooth at the front changes the ratio far more than one tooth at the rear, so make small moves.

530 or 520? Most bolt-on Sportster kits use 530. A 520 chain is narrower and lighter, and dedicated 520 kits are sold for 2004-2022 1200 Sportsters, for example by Sprocket Center. The rule is simple: the chain pitch must match both sprockets. You cannot run a 520 chain on a 530 kit.

O-ring or not? Sealed O-ring and X-ring chains last longer. But Lowbrow warns against O-ring chains with its 2004-up kit, because the extra width can rub on the stock muffler mount or passenger peg mounts on deceleration. Check what your kit allows before you order the chain.

The Swap, Step by Step

This is the outline. Your factory service manual has the torque figures and the parts list for your exact year, and you need it open on the bench. Our steps follow the Lowbrow Customs install guide for earlier Sportsters, adapted to the general case.

  1. Check the parts. Lay out the kit, the chain and the manual. Confirm the sprocket bore fits your hub and the spacer matches the kit instructions.
  2. Get the pulley cover off. Remove the brake line clamp, the rear master cylinder bolts and the pulley cover bolts, then swing the cover out of the way without kinking the brake line.
  3. Pull the lock plate. Two screws hold the lock plate on the front pulley nut. They are normal right-hand thread.
  4. Break the front pulley nut loose. This is where people get stuck. On 1991-up Sportsters the nut is left-hand thread, so it turns clockwise to loosen, as Sportsterpedia and Lowbrow both point out. It is also tight. An impact gun makes this easy. A breaker bar works if the bike cannot roll.
  5. Remove the rear wheel and belt. Lift the bike securely, pull the axle and drop the wheel. The belt comes off with the wheel out. If you want to save the belt and it will not clear, removing the right-side shock usually gives you room.
  6. Swap the rear pulley for the sprocket. Unbolt the rear pulley, clean the threads, and bolt on the sprocket with threadlocker and the kit’s locking hardware. Torque to spec.
  7. Install the front sprocket. Fit the spacer and sprocket per the kit instructions. While the front pulley is off, check the mainshaft seal area. If the manual calls for a new seal, quad ring or spacer for your year, fit them now. Torque the nut to the manual figure and refit the lock plate.
  8. Size the chain. Refit the wheel, push the axle toward the front of its adjustment range, wrap the chain and mark it. Cut and join it with the right master link. Rivet links need the proper tool.
  9. Align and set slack. Lowbrow’s tip: Sportsters have a reference hole in the swingarm, and a bent wire and a sliding marker let you measure hole to axle center on both sides. Match both sides, then set slack with a rider on the bike. Torque the axle nut and fit a new cotter pin.
  10. Refit the cover and recheck. Cover back on, brake line clamped, rear brake tested. After the first short ride, check slack, sprocket bolts and the axle again.

We have watched a guy spend an hour leaning on a breaker bar the wrong way on that front nut. Left-hand thread. Write it on a piece of tape and stick it on the case before you start.

Living With the Chain

The conversion is one afternoon. The chain is forever.

  • Check slack every few fuel stops at first. New chains stretch fastest early on.
  • Clean and lube regularly. After wet rides, always.
  • Replace chain and sprockets together. A new chain on hooked sprocket teeth wears out fast.
  • Watch the rear sprocket bolts. The locking hardware in the kits is there for a reason. Check it at every chain service.

Cheap chains are false economy. A bargain chain on a torquey 1200 can stretch quickly and chew through sprockets. Buy a quality chain from a known maker in the pitch your kit specifies.

Does It Make Sense for Your Bike?

For a stripped Sportster that lives in the garage between weekend rides, yes. It fits the look, it opens up gearing and tire choices, and it gives you another thing on the bike you understand and can fix yourself.

For a high-mile commuter, probably not. The belt is quieter, cleaner and lasts much longer. Spend the money on suspension instead. Our Harley Iron 883 specs guide covers what that looks like on the most common Sportster, and our Sportster 1200 performance upgrades guide covers the engine side.

If you are deep into a build, our Built Not Bought tees are made for riders who turn their own wrenches. For where the Sportster sits in Harley’s long story, the Harley-Davidson history guide covers every engine family.

Sources

Frequently Asked Questions

Why convert a Sportster from belt to chain?

Mostly for gearing choice, tire room and looks. Chain sprockets come in far more tooth counts than belt pulleys, a chain takes up less width than a belt so there is more room for a wider tire, and a chain suits old-school bobber and chopper builds. The trade is more maintenance.

What chain size do Sportster conversion kits use?

Most bolt-on kits for 2004-2022 Sportsters use a 530 chain. TC Bros lists a 22/51 sprocket set and Lowbrow Customs lists 22/52 for the 1200. Lighter 520 kits exist too, but you must match the sprockets to the chain pitch.

Is the Sportster front pulley nut left-hand thread?

Yes on 1991-up Sportsters. Sportsterpedia notes the sprocket nut on 1991-up models has left-hand threads, so it turns clockwise to remove. The two lock plate screws are normal right-hand thread.

Can I use an O-ring chain on a Sportster conversion?

Check your kit first. Lowbrow Customs warns against O-ring chains with its 2004-up kit because the extra width can rub on the stock muffler mount or passenger peg mounts on deceleration.

How long does a chain last compared to the stock belt?

It depends on riding and upkeep. YouMotorcycle puts a typical chain at 10,000 to 15,000 miles against 60,000 to 100,000 miles for a belt. A chain also needs regular cleaning, lubing and adjustment, where a belt mostly needs inspection.
