Harley Nightster XL1200N: 2007-2012 Specs and Review

The short answer

The XL1200N Nightster was the blacked-out 1200 Sportster sold from 2007 to 2012. Harley's 2009 figures: 1200cc Evolution V-twin, 79 ft-lb at 4,000 rpm, 25.3 in laden seat height, 562 lb in running order, 3.3 gal tank. The short rear suspension is its big weakness.

Jump to a section
Harley Nightster XL1200N: 2007-2012 Specs and Review

Park a Nightster next to a chrome-heavy Sportster Custom from the same year and the difference is obvious from across the lot. Black rims, black fork legs, rubber gaiters on the fork tubes, a chopped rear fender with no taillight hanging off it, and the license plate tucked off to the side. It looked like somebody had already started stripping it in their garage.

That was the idea. The XL1200N Nightster took the 1200 Sportster, dropped the chrome and the bulk, and sold it as a factory custom. It ran from 2007 to 2012, and it set the pattern for the Iron 883 and every blacked-out Sportster that followed. This guide covers the air-cooled bike, with Harley’s 2009 figures as the reference year, what the road tests liked and hated, and what to check before you buy one.

Nightster XL1200N at a Glance

  • Model code: XL1200N, part of the Sportster family
  • Model years: 2007-2012
  • Engine: air-cooled 1200cc Evolution V-twin, fuel injected
  • Torque: 79 ft-lb at 4,000 rpm (2009 North American claim)
  • Seat height: 25.3 in laden, 26.3 in unladen (2009)
  • Weight: 545 lb dry, 562 lb in running order (2009)
  • Tank: 3.3 gal
  • Launch price: $9,595 in 2007, $9,899 by 2009

One naming note before we go further. If you search “Harley Nightster” today, most results are about the 2022-on Nightster, a liquid-cooled Revolution Max 975 motorcycle that shares nothing mechanical with this one. Our Sportster history and buyer’s guide covers the new generation. This page is about the original.

How the Nightster Came About

By the mid-2000s the custom scene had moved away from chrome and billet. Riders were buying Sportsters and immediately pulling off the shiny parts, chopping fenders and painting everything flat. The Nightster was a Sportster that came that way from the factory.

The Nightster landed as a 2007 model. Motorcycle Daily’s first ride quoted a $9,595 US price, 545 lb claimed dry weight and a 25.3 in seat height. Wikipedia’s Sportster entry lists the bobbed rear fender, front fork gaiters and side-mount license plate as the model’s signature parts and records its end after 2012.

2007 was also the year every Sportster moved from carburetors to fuel injection, and the Nightster sat on the rubber-mount frame the line had used since 2004. So every Nightster ever built has injection and a rubber-mounted engine. That matters when you read old forum advice about Sportster vibration and carb tuning. Most of it does not apply here.

Two years later Harley took the same recipe, dropped in the 883 engine and cast wheels, and sold it cheaper as the Iron 883. If you are weighing the two, our Harley Iron 883 specs guide has the full numbers for the smaller bike.

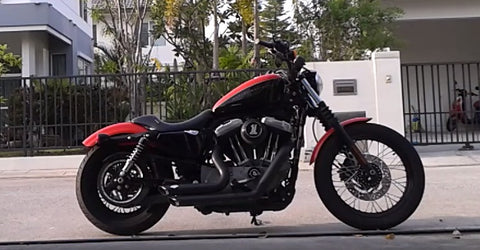

2009 Harley Davidson Nightster XL1200N front view

2009 Nightster Specifications

These are Harley’s published 2009 figures as reproduced by Total Motorcycle.

Engine and drivetrain

Spec2009 XL1200N
EngineAir-cooled Evolution V-twin
Displacement1200cc (73.4 cu in)
Bore x stroke3.50 x 3.812 in (88.9 x 96.8 mm)
Compression9.7:1
Torque79 ft-lb (107 Nm) at 4,000 rpm
Fuel systemElectronic Sequential Port Fuel Injection
Transmission5-speed
Primary driveChain, 38/57
Final driveBelt, 29/68

Chassis and dimensions

Spec2009 XL1200N
Length85.8 in
Wheelbase60 in
Rake / trail29.6 degrees / 4.6 in
Seat height, laden / unladen25.3 in / 26.3 in
Lean angle29 degrees right, 30 degrees left
Weight, dry / running order545 lb / 562 lb
Fuel capacity3.3 gal
Oil capacity2.8 qt
Fuel economy42 mpg city, 57 mpg highway
WheelsBlack laced steel, 19 in front, 16 in rear
TiresDunlop D401F 100/90-19 front, D401 150/80B16 rear
BrakesDual-piston front caliper, single-piston rear, 11.5 in rotors

2009 colors were Vivid Black, Brilliant Silver Denim with Black Denim, and Mirage Orange Pearl with Vivid Black. US MSRP started at $9,899.

On a dyno the numbers look different, as they always do. Cycle World’s 2007 test measured 62.4 hp and 67.4 lb-ft at 3,500 rpm at the rear wheel. That is a solid pull for a 1200 Sportster of the era. It is torque you use in the first three gears, not horsepower you chase at the top.

What Makes a Nightster a Nightster

A stock Sportster 1200 and a Nightster share the engine and frame. The parts that make the difference are all the stuff builders usually change first.

Fork gaiters. Accordion rubber boots over the fork tubes. They look old school, and they help keep grit off the fork seals.

Short rear fender with no separate taillight. The rear turn signals double as the brake and running lights, which lets the fender stay clean. Cycle World pointed out that they work the way a car’s rear lights do.

Side-mount license plate. The plate sits on the left side of the rear wheel. Cycle World noted it is hinged so it can fold rearward.

Lightening holes. The belt guard and the front fender bracket got drilled holes, a nod to old race bikes where every ounce mattered.

Black everywhere. Black laced rims and hubs, black forks, black bars, dark engine finishes. Chrome was left for the exhaust and not much else.

Solo seat and low stance. At 25.3 inches laden, the Nightster was one of the lowest Sportsters Harley sold at the time.

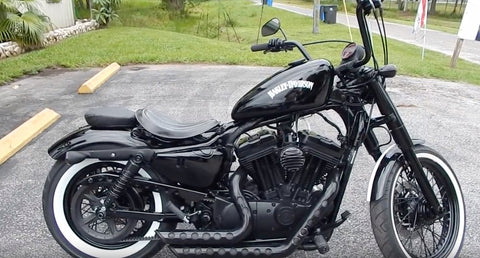

2009 Harley Davidson Nightster side view with fork gaiters and bobbed fender

How It Rides: What the Road Tests Said

Harley Nightster XL1200N: 2007-2012 Specs and Review

The launch reviews agreed on almost everything, good and bad.

The engine is the best part. Cycle World said it ran beautifully on injection and liked the solid, positive shift. There is real grunt from low revs, and the 1200 pulls hard enough that you rarely need to wring it out.

It handles city riding well. Motorcycle Daily rated it highly around town. The low seat and wide bars make it easy to flick through traffic and easy to hold up at a stop.

The rear suspension is the problem. This is the big one. Cycle World measured 4.6 inches of travel from the 39mm fork but only 2.4 inches at the rear, and two of its testers, one around 160 lb and one around 210 lb, bottomed the shocks on bumps. Motorcycle Daily described getting a swift kick over big hits at speed.

The front brake is weak. Motorcycle Daily called the front brake wooden and said it leaned on the rear brake to stop hard. A single front disc on a 560-pound bike does not leave much margin.

Wind is tiring above 65. No screen, upright position, wide bars. It is fine for a couple of hours on back roads and a chore on a long interstate day.

We have heard the same story from Nightster owners for years. The bike looks right, sounds right and pulls right, and then the first pothole at 50 mph tells you why the aftermarket sells so many Sportster shocks.

Nightster vs Iron 883 vs Sportster 1200 Custom

Nightster XL1200NIron 883 XL883N1200 Custom XL1200C
Engine1200 Evolution883 Evolution1200 Evolution
LookBlacked-out, laced wheels, gaitersBlacked-out, cast wheelsChrome, classic custom styling
Years2007-20122009-2022long-running
Best forTorque with a stripped lookCheapest entry into the lookComfort and chrome

The Nightster’s case is simple. It gives you the Iron’s attitude with the 1200’s pull. Used prices move with region and condition, so compare local listings for both before you decide.

Buying a Used Nightster

The youngest Nightster is a 2012, so any bike you look at now has age on it. What we check:

Rear shocks. Many owners have already replaced them. If the originals are still on, budget for new ones. Look for leaks and a bouncy rear end on a short test ride.

Front brake. Fresh pads and fluid make a noticeable difference. A spongy lever on a test ride means the fluid has not been changed in a long time.

Belt and belt guard. Look for cracks, frayed edges and missing teeth. A stone caught between belt and pulley can chew teeth off fast.

Primary chain adjustment. The Evolution Sportster uses a chain primary that needs periodic adjustment. Ask when it was last done.

Charging system. Check battery voltage at idle and again at a fast idle. It should rise and hold. If it does not, the stator or regulator needs a look before you buy.

Recalls. Run the VIN through Harley’s service recall lookup. Our Harley VIN lookup guide explains how to read the number.

No cam chain, no valve adjustments. The Sportster Evolution drives its four cams with gears and runs hydraulic lifters, so there is no cam chain tensioner to worry about and no scheduled valve adjustment. Our Sportster Evolution engine guide explains how it differs from the Big Twin Evo.

Mods That Make Sense

Rear shocks first. Longer or better-damped shocks fix the Nightster’s worst trait. Longer shocks also raise the seat, so decide how much of the slammed look you are willing to trade.

Exhaust and air cleaner with a proper tune. The 1200 responds well, but with injection you need a matching fuel map. If you want to go further, our Sportster 1200 performance upgrades guide covers what actually works.

Bars and controls to fit your body. The stock bars are wide and the pegs sit in the middle. Taller riders often feel cramped, because the low seat folds your knees up. A different seat or a bar with a little more pullback can fix that without touching the look. Any bar change on a Sportster can mean new cables, brake line or wiring, so buy a kit listed for the exact year and check everything moves freely lock to lock.

Front brake upgrades. Fresh fluid and better pads are the cheap first step. Braided lines are the next. They will not turn a single disc into a pair, but they firm up the lever feel the road testers complained about.

Keep it simple. The Nightster already looks like a bobber. A spring solo seat, a smaller headlight and a cleaner rear end finish the job. Our Sportster bobber builds show how far riders have taken the platform, and our Harley bobber builds put it next to Softail and Shovelhead projects.

If you ride one, our biker tees and hoodies are made for riders who build their own. For the full timeline of where the Sportster fits, see the Harley-Davidson history guide.

Sources

Frequently Asked Questions

What engine does the 2009 Harley-Davidson Nightster have?

An air-cooled 1200cc Evolution V-twin with an 88.9 mm bore, a 96.8 mm stroke, 9.7:1 compression and Electronic Sequential Port Fuel Injection. Harley quoted 79 ft-lb of torque at 4,000 rpm for North America.

What is the seat height of the Harley Nightster XL1200N?

Harley's 2009 spec sheet lists 25.3 in laden and 26.3 in unladen. The laden figure is measured with a rider aboard, which is why the Nightster was one of the lowest Sportsters of its day.

How much does the 2009 Nightster weigh?

Harley quoted 545 lb dry and 562 lb in running order for 2009. Running order includes fuel and fluids, so 562 lb is the number to use when you judge whether you can handle it.

What years was the XL1200N Nightster made?

The air-cooled XL1200N ran from the 2007 model year to 2012. Harley brought the Nightster name back in 2022 on a completely different liquid-cooled Revolution Max 975 motorcycle.

What is the fuel economy of the 2009 Nightster?

Harley listed 42 mpg city and 57 mpg highway for 2009. With a 3.3 gallon tank, plan fuel stops around 110 to 130 miles rather than riding to the theoretical limit.
